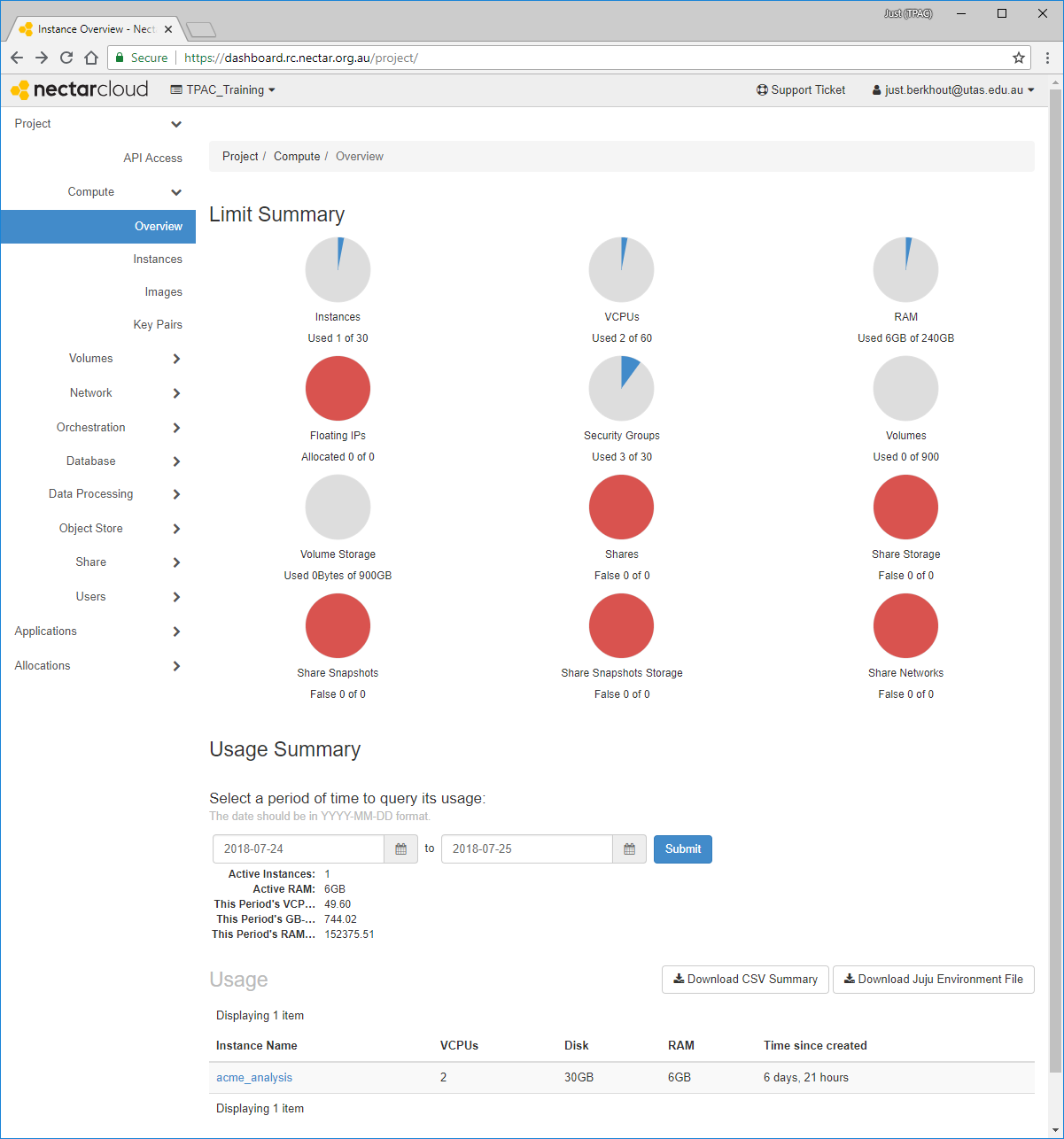

Nectar has released a new version of the Nectar Research Cloud dashboard. The Nectar Research Cloud dashboard update includes many usability improvements, a slightly updated look and feel and support for additional services while ensuring the Nectar Research Cloud aligns with recent versions of Openstack.  Your Project Overview page has a new look, and the navigation panel on the left hand side has been rearranged. The Launch Instance dialog and the way Images are organised have been changed considerably.


Navigation changes

The navigation panel on the left hand side of the dashboard gives access to most of the Nectar OpenStack features and is organised in three levels. A complete list of all the options available in the navigation panel is shown in the table below.

Project

API Access
moved

Compute
Overview



Instances



Images



Key Pairs
moved

Volumes
Volumes
moved


Backups
moved


Snapshots
moved

Network
Network Topology



Networks



Routers



Security Groups
moved


Load Balancers
new


Floating IPs
new

Orchestration
Stacks



Resource types



Template Versions
new


Template Generator
new

Database
Instances



Backups



Configuration groups
new

Data Processing
Clusters
out of Beta


Plugins
out of Beta


Jobs
out of Beta

Object Store
Containers


Share
Shares
new


Share Snapshots
new


Security Services
new


Share Groups
new


Share Group Snapshots
new

Users
Users

Applications
Browse
Browse Local
new

Manage
Packages
new


Images
new


Categories
new

Applications
Environments
moved
Allocations

New Request



My Requests


Launch Instance Dialog changes

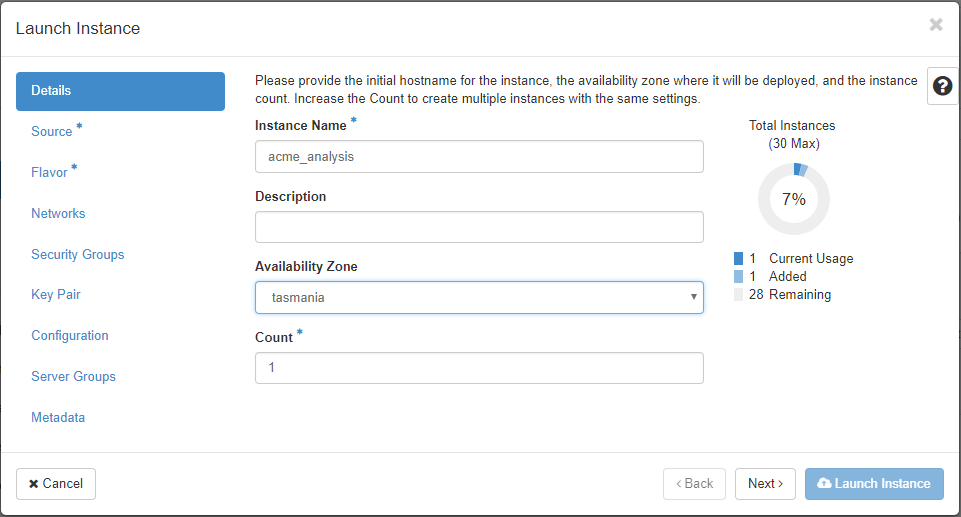

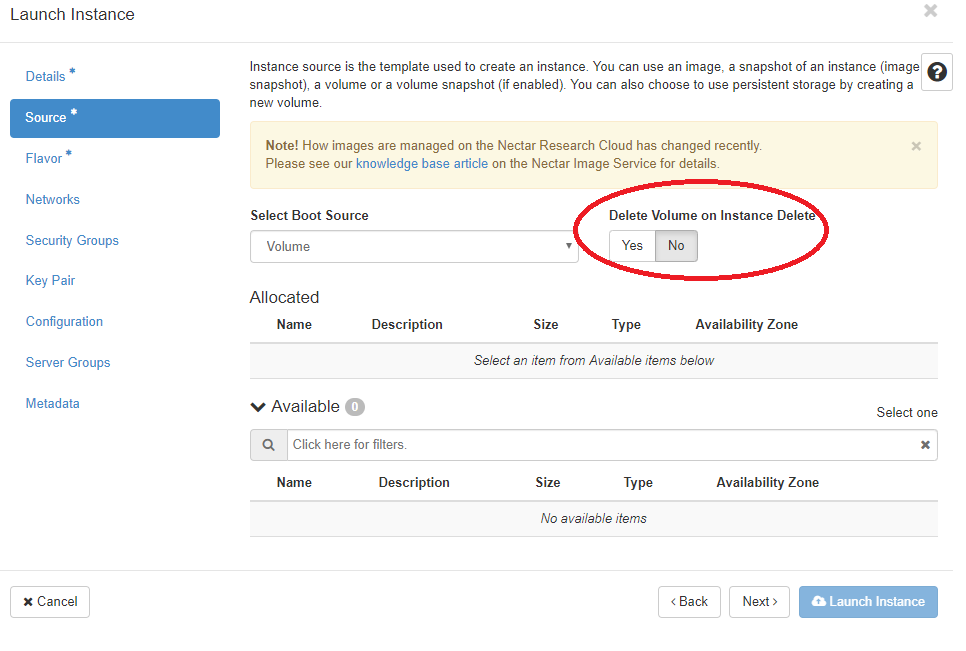

The Launch Instance Dialog, the tabbed window that used to launch instances, is now presented as a Wizard. You can still access the Launch Instance Dialog from the familiar locations on the Instances page and the Images page. The wizard format makes it much harder to forget to select your key pair, and provides a unified way for searching, browsing and choosing an image, flavor, key and security groups.


Images Changes

The new dashboard has introduced some changes to the image service. Over time there has been a huge growth in the number of Virtual Machine images being shared on on the Nectar Research Cloud. As the number of public images increases, listing them on the dashboard and through the CLI tools has become slower. In the new Dashboard we've made a change to how images are listed.

The Nectar image service now supports a new image visibility called "community" so we have switched images set as "public" by our users over to this new "Community" visibility. Nectar Official images will now be the only  "Public" Images in the new dashboard.

In the old dashboard when you listed images through the dashboard or the Glance and OpenStack CLI tools, all images available to you were listed, including all images that were owned by you, shared with you, Nectar official images and public images created by other users.

In the new dashboard, the images that have been made public by other Nectar Research Cloud users (Community Images) will not be shown by default. You’ll still see your own images, images shared with you by other projects and Public (Nectar official) images.

To view the the Community images, you can use the Visibility filter on the dashboard, and select Community

You can also provide the appropriate command line option to the CLI tool. You can use the visibility filter to view Public, Private and Shared with Project images.

We recommend using python-glanceclient for this. You can pass the --visibility=community command line argument to list community images:

glance image-list --visibility=community

You can also set an image you own to become a community image using:

glance image-update --visibility=community <image id>

The OpenStack Client tool currently does not support listing community images, but support for this has recently been added to the source code. In a future release, you will be able to  simply pass the --community argument.

openstack image list --community


New Services Released in the New Dashboard

A new addition to the Nectar Dashboard is Load Balancer as a Service (LBaaS). You'll find it grouped with the other network features under Project in the navigation panel. The Data Processing and Shared Filesystem Services are no longer in beta and have been released in the Nectar Cloud environment with the new dashboard.

Some of the new services that are released are subject to allocation approval. The new Nectar Dashboard release also introduces some changes to the Allocation Request form, which you will see when you request a new allocation, or when you amend/extend an existing project. Changes to the Allocation Request Form include improved help information, changes to the the computing resources section to assist in accommodating requesting new services that have been released and grant information is now mandatory to help allocation approvers assess allocation requests.

The new dashboard adds a user-friendly, drag and drop interface for generating Heat Orchestration templates, under Orchestration in the navigation panel. Note that template Import/Export functions are not implemented in the current dashboard release.

Further Information

Screen shots and text may not exactly match the new dashboard. Over time our documentation will be updated to reflect the new dashboard changes If the documentation you find does not help resolve any issue you might be trying to resolve, then you can always get in touch with our support staff at support@ehelp.edu.au.
